electrical roll bending machine manufacturer

Ready for easyroll©

Available in 100% electric version

> R2, R3, R4… Find out which plate bending machine is right for you?

The solution to your
problem… and more

3 rollers
Capacity: 0.5-8 mm (steel S235)
Usable length: 1-3 m

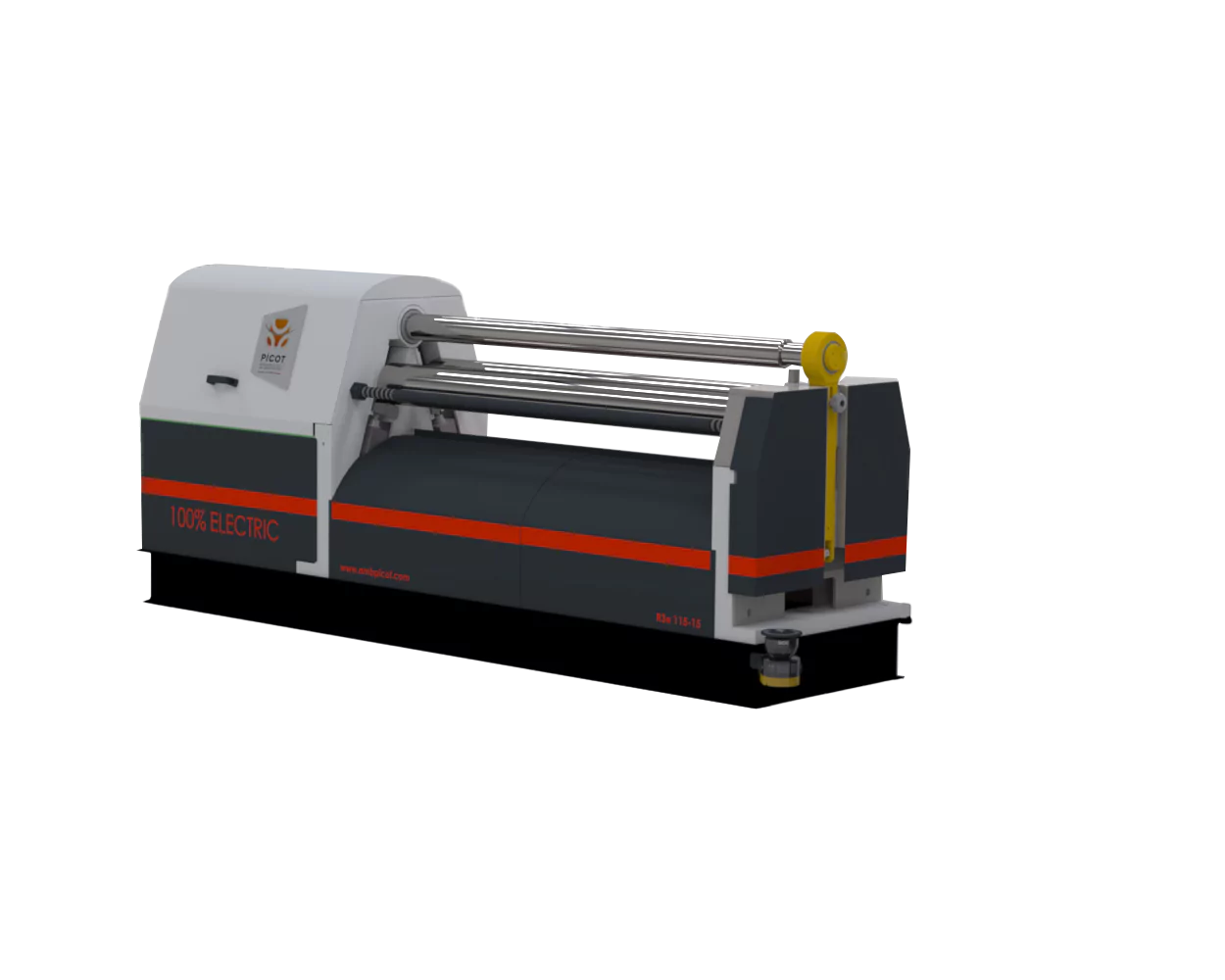

The R3e and R4e bending machines are the 100% electric versions of our machines.

Each roller is driven by independent synchronous motors. High-performance electrical cylinders (0.01 positioning precision) make the rollers travel up and down.

Its ability to roll thin materials without laminating the sheet and its prebending performance with a limited residual flat edge are thanks to its special symmetric architecture. Thanks to its linear guide system (specific angle) and its bearing system with bronze rings, we guarantee high-quality rolling with regard to sheet edge straightness and cylindrical roundness.

We especially recommend the electric version of our plate bending machines for:

Its high precision
Up to 80% energy savings compared to the hydraulic version.
Interchangeable top roller
Quiet operation and ease of use
Minimum maintenance.

Available in Easyroll version only

Talk to an expert

RXe What are the advantages of PLATE
BENDING MACHINES IN ELECTRIC VERSION

High precision

Each roller is driven by independent synchronous motors.

High-performance electrical cylinders (0.01 positioning precision) make the rollers travel up and down.

The rollers are synchronised by NC. Variable speed of rotation according to the control strategy and handling of joysticks.

Benefits: maximum torque, optimised efficiency, synchronised speed, reliability, maximum efficiency and no wear.

Note: our competitors have only one or two powered rollers as standard, and not with synchronous electric motors

Interchangeable top roller

For the purpose of creating small-diameter parts, the machine can be supplied with an interchangeable roller of the desired diameter.

Energy savings

The machine only consumes energy when the rollers are moving or rotating, unlike the operation of hydraulic units.

According to the operating cycles and its use, up to 80% energy savings can be achieved.

Silent machine

With 100% electric actuators, the machine is very convenient and quiet to use.

Minimum maintenance

Because the bending machine is 100% electric, you have no problems with the presence of oil or oil leakage. Maintenance is limited to the strict minimum.

Benefit
