Sheet bending machine: HMI & easyroll©

Controlling your roll bending machine is child’s play!
Watch our video presentation



Plate Roll Bending Machine Manufacturer with Programmable Interface



Manufacturer of programmable plug&play two-, three- or four-roller plate bending machines.

UPGRADABLE MACHINES

Reliability, quality, ease of use, and above all, cost-effective manufacturing.

Because they are so versatile, roll bending and prebending machines are used all over the world in a wide range of sectors: industry, transport, civil engineering, aeronautics, energy, and construction.
According to their equipment, these machines are equally suited to single-item production or short or long production runs.

*Precision +/- 2.5% on the diameter

+ -

TOUCHSCREEN CNC

Plate Roll Bending Machine Control Touch Screen Console

Precision and a user-friendly roller programming interface



Touchscreen console, with CNC electronic control and a roller control interface developed by Picot:

  • Manual mode with display of roll bending diameter

  • Automatic / program mode

  • Material calibration mode for precise calculation of bending dimensions

  • Program generating

  • Capacity checking module

  • Module to calculate roll inclination / cone forming

  • Maintenance (online option)

Our consoles are designed for plug & play operation: no action required on your machine.

+ -

ELECTRONIC CONSOLE

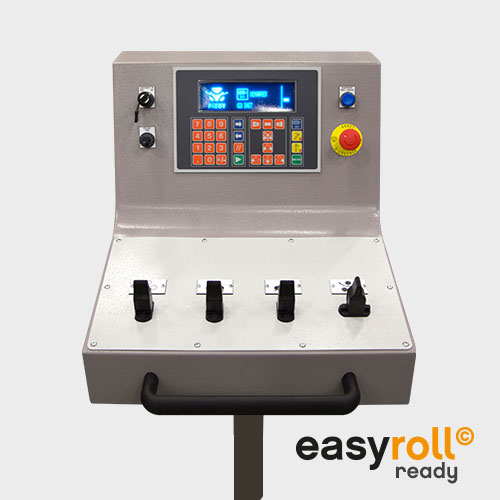

Roll Bending Machine Control Screen

Precise control of the bending machine



Numerical control console/
, combined with an electronic control system.
Includes:

  • position and rotation indicators

  • Four ergonomic controllers (one of which includes the movements of the prebending rollers); a four-roller machine uses five controllers

  • Electronic cone forming control of rollers

  • Maintenance indicators

  • Danfoss proportional hydraulic valve manifold

  • Programmable numerical control (500 programs) available as an option

Our consoles are designed for plug & play operation: no action required on your machine.

+ -

BASIC CONSOLE

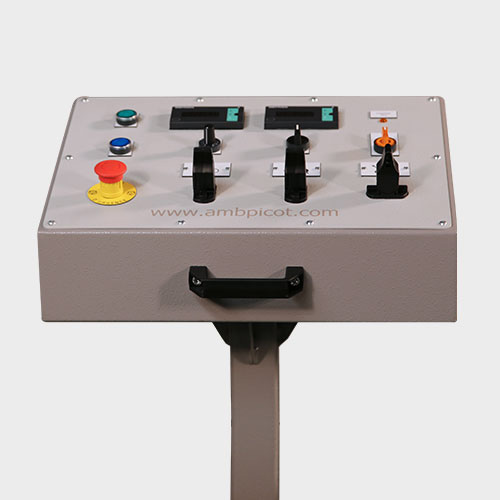

Plate Roll Bending Machine Control Console

Easy to use



The first console in the Picot range; controls the roll bending machine remotely and allows movement around the machine.
Includes:

  • Two position indicators

  • Three ergonomic controllers

  • Head opening control (if hydraulically controlled head)

  • Hydraulic power pack start button

  • Danfoss proportional hydraulic valve manifold

    (option available for compatibility with upgrade to electronic or touchscreen console)

Our consoles are designed for plug & play operation: no action required on your machine.

+ -

STANDARD CONTROLS (without console)

Bending Machine Remote Control System Easyroll

Easy to use



Control interface on the machine, comprising:

  • Two position indicators (on the electrical switch box).
  • Control lever (hydraulic and progressive)

Simple and easy to use

Bending assistance

The plate bending machines are controlled by components (electronic boards)

and software developed in-house by our design office.

Manufacturer of plate bending machines with EasyRoll programming interface

Picot introduced EasyRoll in 2018.

This package is a toolkit to make bending more intuitive and efficient, based on a smart material database. This innovation, patented in late 2017, considers both the springback and the bending mode chosen by the user to obtain the desired diameter at the first attempt.*



The EasyRoll package contains five main modules that help the user learn to use the machine very quickly via an ergonomic interface.





two-, three-, or four-roller hydraulic plate bending machine. Programmable bending machine with EasyRoll interface.

Select a module to learn more

  • Smart material database
  • Integration of springback
  • Programming assistant
  • Tilting Assistant
  • Automatic prebending

Smart material database


Smart material database

Plate bending machine with material database

SMART MATERIAL DATABASE INCLUDED IN THE PLATE BENDING MACHINE

Patented by PICOT: the machine takes the material’s mechanical properties into account.

This process was patented on 22 December 2017 (Patent No. 1763003). It was developed by combining
finite elements simulations with advanced algorithmic processing
and allows EasyRoll to predict the behaviour of the rolled material according to its characteristics (thickness, springback, intrinsic mechanical properties, etc.).


Integration of springback


Integration of springback

Manufacturer of plate bending machines with springback simulation

MANUAL ROLLING

Allowing for springback and real-time display of bending diameter.

When you work manually, the real-time display of the diameter guides you through the prebending and bending process.
EasyRoll automatically chooses the right algorithm to fit your bending strategy so you can get the right diameter on the first try, without any corrections or prior calibration.


Programming assistant


Programming assistant

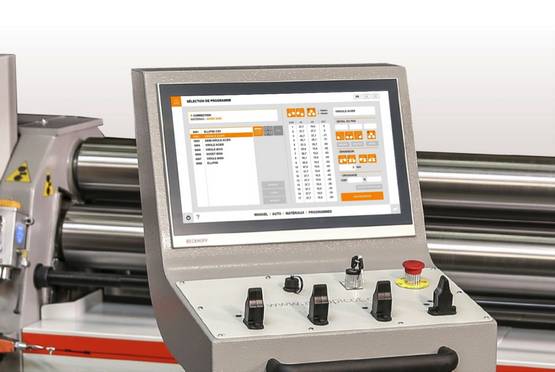

two-, three-, or four-roller plate bending machine with shape assistant

PLATE BENDING MACHINE WITH SHAPE ASSISTANT

shape-drawing assisted programming.

When you want to create a sheet bending program, once again EasyRoll will guide you through the process.
Gone are the days of making many test parts before finding the right bending positions. The shape assistant invites you to draw your shape, and then it automatically writes the bending program so that you can succeed at the first attempt!*

If you are creating your parts via computer-aided design, you can also import a dot file describing the shape.
EasyRoll then interprets the dots to generate the bending program.*


Tilting Assistant


Tilting Assistant

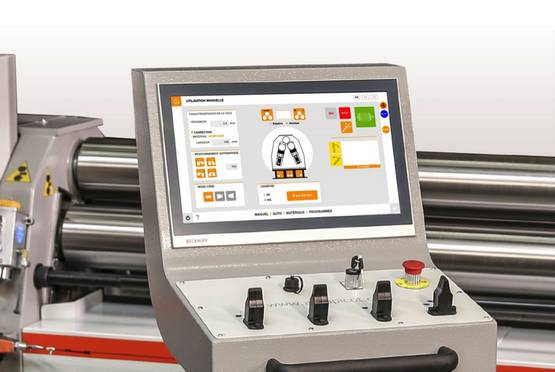

Manual bending with cone wizard

TILTING ASSISTANCE FOR SHEET BENDING MACHINE

Calculated the required tilt according to the material.

This process was patented on 22 December 2017 (Patent No. 1763003). It was developed by combining
finite elements simulations with advanced algorithmic processing
and allows EasyRoll to predict the behaviour of the rolled material according to its characteristics (thickness, springback, intrinsic mechanical properties, etc.).


Automatic prebending


Automatic prebending

Plate bending machine with automatic prebending program

PLATE BENDING MACHINE WITH AUTOMATIC PREBENDING

You can also insert an automatic prebend into any existing program.
Choose the material, thickness, and diameter. EasyRoll then updates the program for you.




Manufacturer of plate bending machines with EasyRoll programming interface

By equipping its three-roller plate bending machines with EasyRoll, PICOT delivers a powerful package of experience and technology, for intuitive and efficient bending that will satisfy expert users and novices alike.

The combination of the many tools described above with the well-known quality of PICOT roll bending and prebending machines lets experienced users take maximum advantage of their expertise by focusing on high-added-value tasks.
Meanwhile, beginners are guided as they familiarise themselves with the machine, developing confidence with bending and prebending, both manually and by creating complex bending programs.

Designed to create one-off items (manual mode) just as well as large production runs (assisted programming), EasyRoll numerical control adapts to every need.
Now there’s a single machine that lets you handle varied, complete, complex projects with no worries.

It’s so easy to learn to use EasyRoll that you can skip the tedious process of programming by trial and error. This saves both time and materials.

What a major boost to your productivity!

The precision electronic control offered by EasyRoll’s interpolated rolling mode lets the user roll highly complex profiles without marking the diameter transitions.
